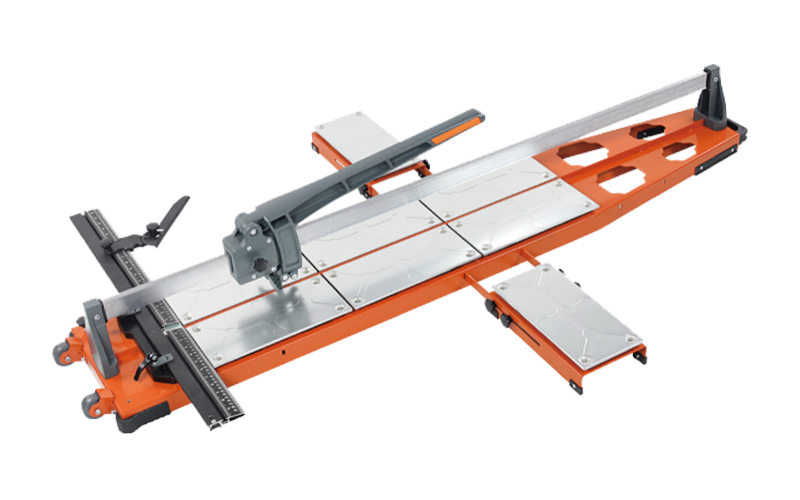

TILER 8102G-3Y Large Format Manual Tile Cutter | Precise Cutting Performance | Perfect for Large Tiles

Categories	Manual Tile Cutters
Brand	TILER tile cutting and laying tools distrubutor
Model	8102G-3Y
Material	Durable steel
Guide Rails Material	Reinforced Alloy Steel
Cutting Wheel Material	Tungsten Carbide
Cutting Thickness	Up to 18mm
Cutting Accuracy	Within 1.0mm
Separator Power	1200kgs
Base Engraving	Laser Engraved
Maximum Width of Expansion	930mm
Download
Update Time	Dec 22,2024

Contact Now

Favorites

Detail Information

◢ SPECIFICATION

ART.	MAX.CUTTING LENGTH (mm)	MAX.DIAGONAL CUTTING LENGTH(mm)	CUTTING THICKNESS (mm)	BREAKING POWER (kg)	SIZE OF CUTTING WHEEL (mm)	QTY/CTN	WEIGHT (kg)	LxWxH (cm)
8102G-3Y-1050	1050	740	4-18	1200	2266	1	27	13635.528.5
8102G-3Y-1300	1300	920	4-18	1200	2266	1	32	16135.528.5
8102G-3Y-1550	1550	1095	4-18	1200	2266	1	35.5	18635.528.5

◢ DESCRIPTION

TILER Large Format Manual Tile Cutter 8102G-3Y with Transport Handle and Wheels, Laser Engraved Base, 10 Ball Bearing inside, Anti-Skid Feet & Ergonomic Handle, for Precision Cutting Porcelain Ceramic Floor Tiles, Manufacturer Wholesale 【1050|42 inch; 1300mm|52inch；15500mm|62inch】

▪ Precision Cutting: With an accuracy of within 1.0mm, this tile cutter is ideal for precise cuts and ensures that your tiles fit perfectly.

▪ Versatile: The tile cutter can handle various types of cuts, including straight cuts and angle cuts between 0° and 60°, making it suitable for a wide range of tiling projects.

▪ Durable and Reliable: The base of the tile cutter is made of steel and the guide rails are made of reinforced alloy steel, ensuring durability and longevity. The cutting roller has a service life of up to 2000 meters, making it a reliable tool for your tiling needs.

▪ Easy to Use: The tile cutter comes with an 80cm aluminum die-casting adjustable gauge and a human-engineering big handle, making it easy to adjust and use. The transfer wheels and handle also make it easy to move the tile cutter around.

▪ High Capacity: The tile cutter has a separator power of 1200kgs and can handle tiles up to 18mm thick, making it suitable for high-volume tiling projects.

▪ Support for Large Tiles: The tile cutter comes with 1 pair of extension arms to support large-size tiles, and can handle tiles with a maximum width of expansion of 930mm.

▪ Smooth Cutting: The support parts are made of strong die casting aluminum and have sliding bars with ball bearing technology, ensuring smooth and effortless cutting.

▪ Manual Tile Cutter 8102G-3Y Top Range ▪

Looking for a powerful and reliable tile cutter to add to your product lineup? Look no further than the 8102G-3Y Top Range Manual Tile Cutter! With a separator power of 1200kgs, it can handle tiles up to 18mm thick with ease, making it the perfect tool for high-volume tiling projects.
➣ Order now and stay ahead of the competition!

◢ MODELS FOR 8102G-3Y

▪ 8102G-3Y-1300 ▪

Types:straight cut,angle cut(0°-60°)

Accuracy:within 1.0mm

Minimum tile thickness:4mm

Maximum tile thickness:18mm

Base material:steel

Width of Base :300mm

The maximum width of expansion：930mm

Guide rail material:alloy steel

Guide rail section size:40*15mm

Galvanized spring cover plate

Cutting roller (cutter):22mm

Transfer wheels and handle :Yes

▪ 8102G-3Y-1550 ▪

Types:straight cut,angle cut(0°-60°)

Accuracy:within 1.0mm

Minimum tile thickness:4mm

Maximum tile thickness:18mm

Base material:steel

Width of Base :300mm

The maximum width of expansion：930mm

Guide rail material:alloy steel

Guide rail section size:40*15mm

Galvanized spring cover plate

Cutting roller (cutter):22mm

Transfer wheels and handle :Yes

◢ FAQ

What types of cuts can the TILER Large Format Manual Tile Cutter 8102G-3Y handle?

The TILER Large Format Manual Tile Cutter 8102G-3Y can handle various types of cuts, including straight cuts and angle cuts between 0° and 60°.

What is the maximum thickness of tiles that the TILER Large Format Manual Tile Cutter 8102G-3Y can handle?

The TILER Large Format Manual Tile Cutter 8102G-3Y can handle tiles up to 18mm thick, making it suitable for high-volume tiling projects.

Can the TILER Large Format Manual Tile Cutter 8102G-3Y support large tiles?

Yes, the tile cutter comes with 1 pair of extension arms to support large size tiles, and can handle tiles with a maximum width of expansion of 930mm.

Is the cutting process smooth and effortless with the TILER Large Format Manual Tile Cutter 8102G-3Y?

Yes, the support parts are made of strong die casting aluminum and have sliding bars with ball bearing technology, ensuring smooth and effortless cutting.

How durable is the TILER Large Format Manual Tile Cutter 8102G-3Y?

The base of the tile cutter is made of steel and the guide rails are made of reinforced alloy steel, ensuring durability and longevity. The cutting roller has a service life of up to 2000 meters.

Is the TILER Large Format Manual Tile Cutter 8102G-3Y easy to use?

Yes, the TILER Large Format Manual Tile Cutter 8102G-3Y is designed to be easy to use. It comes with an 80cm aluminum die-casting adjustable gauge and a human-engineering big handle, which make it easy to adjust and use. The tile cutter also features a spring-loaded cover plate that makes it easy to cut tiles. Additionally, the transfer wheels and handle make it easy to move the tile cutter around, allowing you to work on your tiling project with ease.
